64-71GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-6471-WR12

Brand Name : Vinncom

Model Number : VN-WGCIR-6471-WR12

Certification : RoHS/ISO9000

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 50pcs per day

Delivery Time : 2-4weeks

Packaging Details : foam+box

Operating Frequency (GHz ) : 64-71

Operating Temperature( ℃ ) : -45 ~ + 80

Insertion Loss(dB Max) : ≤0.8

Isolation(dB Min) : ≥16

Isolation(dB) : ≥16

Contact Now

64-71GHz WR-12 WAVEGUIDE CIRCULATOR

  • Compact and rugged waveguide construction
  • Protection of sensitive sources from reflected power
  • High power handling capability

A WAVEGUIDE CIRCULATOR is a non-reciprocal, three‑port (or four‑port) ferrite device.
A WAVEGUIDE CIRCULATOR uses a magnetically biased ferrite element to create non‑reciprocal phase shift.
When a signal enters port 1 of a WAVEGUIDE CIRCULATOR, it exits only from port 2, not port 3.
Similarly, a WAVEGUIDE CIRCULATOR directs a signal from port 2 to port 3, and from port 3 to port 1.
Therefore, a WAVEGUIDE CIRCULATOR provides unidirectional circulation of microwave energy.
Because of this property, a WAVEGUIDE CIRCULATOR isolates input ports from output ports while maintaining low insertion loss in the forward direction.

VN-WGCIR-6471-WR12.pdf

Part Number VN-WGCIR-6471-WR12
Operating Frequency ( GHz ) 64-71
Insertion Loss(dB) ≤0.8
Isolation(dB) ≥16
Return Loss(dB) ≥16
Operating Temperature ( ℃ ) -45 ~ + 80
Interface WR12 with UG-383/U Anti-Cocking

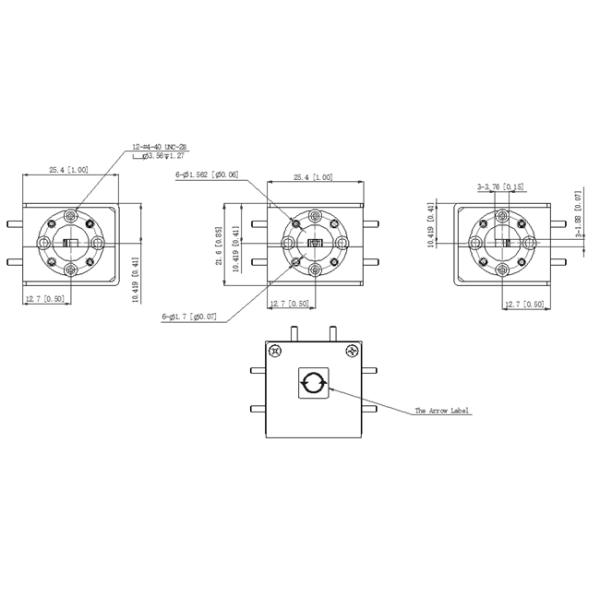

Dimension(mm) As below
Handling Power 3W/3W
ROHS Compliance Yes
64-71GHz WR-12 WAVEGUIDE CIRCULATOR VN-WGCIR-6471-WR12
