33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 3350GHz WR22 WAVEGUIDE LOAD VNWGLD3350WR22
Brand: Vinncom
Price: 1 USD

Brand Name : Vinncom

Model Number : VN-WGLD-3350-WR22

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500

Part Number : VN-WGLD-3350-WR22

Operating Frequency ( GHz ) : 33-50

Impedance ( Ohm ) : 50

VSWR : ≤1.06

Interface : WR22(BJ400)

Contact Now

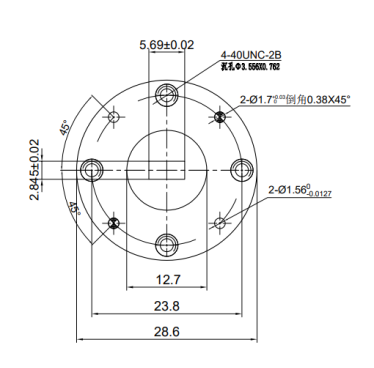

33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22

Installation Orientation:
Some high‑power WAVEGUIDE LOAD must be mounted with the fins vertical to optimize convection. Always follow the datasheet of that specific WAVEGUIDE LOAD.
Verification:
After installation, use a network analyzer to confirm that the WAVEGUIDE LOAD presents a return loss better than 30 dB (VSWR < 1.065).
Protection of Sensitive Components:During transmitter testing or amplifier tuning, a WAVEGUIDE LOAD acts as a dummy antenna. Without a WAVEGUIDE LOAD, reflected power could destroy expensive devices such as magnetrons or solid‑state amplifiers.

33-50GHz WR-22 WAVEGUIDE LOAD VN-WGLD-3350-WR22

Product Tags:

50GHz Waveguide Load
