89-99GHz WR-10 WAVEGUIDE FILTER

Name: 8999GHz WR10 WAVEGUIDE FILTER
Brand: Vinncom
Price: 1 USD

Model Number : VN-WGFLT-8999-WR10

Operating Frequency ( GHz ) : 89-99

Payment Terms : L/C, D/A, D/P, T/T

Price : negotiable

Interface : WR10(BJ900)

Supply Ability : 500

Brand Name : Vinncom

Part Number : VN-WGFLT-8999-WR10

MOQ : 5 pcs

VSWR(dB) : 2

Certification : ISO 9000 ROHS

Impedance ( Ohm ) : 50

Place of Origin : China

Insertion Loss(dB) : ≤3

Contact Now

89-99GHz WR-10 WAVEGUIDE FILTER

Temperature‑stable performance (metal construction)
Low insertion loss in the passband
Excellent rejection of harmonics and spurious signals

Working Principle of a WAVEGUIDE FILTER

A WAVEGUIDE FILTER is a passive frequency‑selective waveguide component.
A WAVEGUIDE FILTER allows signals within a specific frequency band to pass with very low insertion loss.
Outside that passband, a WAVEGUIDE FILTER provides high attenuation (rejection) to unwanted signals.

How to Use a WAVEGUIDE FILTER (Usage Method)

Select the correct filter type –
Choose a WAVEGUIDE FILTER that matches the required response: band‑pass, low‑pass, high‑pass, or band‑stop.
Verify frequency range –
A WAVEGUIDE FILTER must have its center frequency and bandwidth aligned with your system's operating frequency.

Part Number	VN-WGFLT-8999-WR10
Operating Frequency ( GHz )	89-99
Rejection(dB)	50 min@87GHz/30 min@102GHz
Insertion Loss(dB)	≤3.0
VSWR	2.0:1
Interface	WR10(BJ900)
Operating Temperature ( ℃ )	-40 ~ + 80

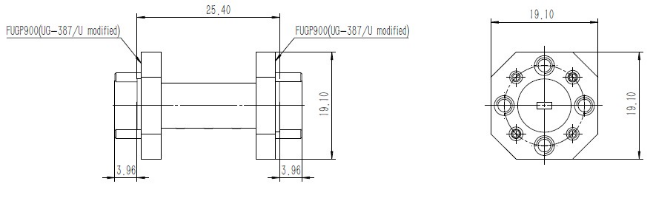

Dimension(mm)	As below
ROHS Compliance	Yes

89-99GHz WR-10 WAVEGUIDE FILTER
