15-22GHz WR-51 WAVEGUIDE MAGIC T

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 1522GHz WR51 WAVEGUIDE MAGIC T
Brand: Vinncom
Price: 1 USD

MOQ : 5 pcs

Part Number : VN-WGMT-1522-WR51

Certification : ISO 9000 ROHS

Model Number : VN-WGMT-1522-WR51

Brand Name : Vinncom

Payment Terms : L/C, D/A, D/P, T/T

VSWR E-plane : 1.5:1(Typical surfance)

Price : negotiable

Symmetry(dB) : ±0.4

Supply Ability : 500

Insertion Loss(dB) : 1.3:1(Typical surfance)

Isolation(dB) : ≥30

Place of Origin : China

Operating Frequency ( GHz ) : 15-22

Contact Now

15-22GHz WR-51 WAVEGUIDE MAGIC T

Connect source to H‑arm –
For in‑phase power division, feed the input signal into the H‑arm of the WAVEGUIDE MAGIC T.
Use collinear arms as outputs –
The two collinear arms of a WAVEGUIDE MAGIC T serve as balanced outputs, each receiving half the input power.
Use as a combiner –
Feed two signals into the collinear arms of a WAVEGUIDE MAGIC T; the sum appears at the H‑arm and the difference appears at the E‑arm.
Terminate unused ports –
Any unused port of a WAVEGUIDE MAGIC T must be terminated with a matched WAVEGUIDE LOAD to prevent reflections.
Power rating check –
Before operating a WAVEGUIDE MAGIC T, verify the average and peak power ratings for all four ports.

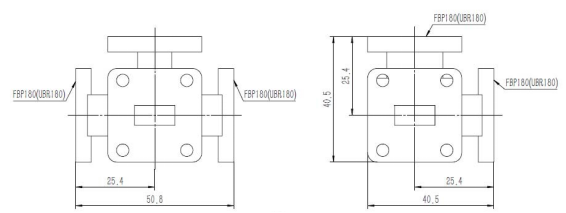

15-22GHz WR-51 WAVEGUIDE MAGIC T
