10-15GHz WR-75 WAVEGUIDE MAGIC T

Product Categories

HeFei Vinncom Electronic Technology Co.,Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 1015GHz WR75 WAVEGUIDE MAGIC T
Brand: Vinncom
Price: 1 USD

Operating Frequency ( GHz ) : 10-15

Model Number : VN-WGMT-1015-WR75

Supply Ability : 500

Part Number : VN-WGMT-1015-WR75

Brand Name : Vinncom

Payment Terms : L/C, D/A, D/P, T/T

Isolation(dB) : ≥30

Price : negotiable

Symmetry(dB) : ±0.4

MOQ : 5 pcs

Insertion Loss(dB) : 1.3:1(Typical surfance)

Certification : ISO 9000 ROHS

VSWR E-plane : 1.5:1(Typical surfance)

Place of Origin : China

Contact Now

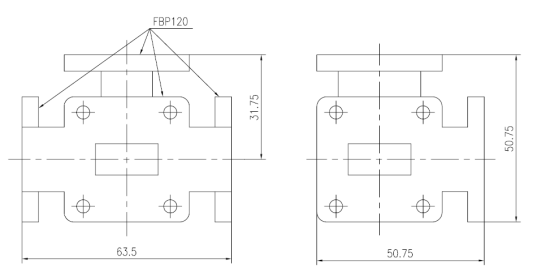

10-15GHz WR-75 WAVEGUIDE MAGIC T

Application Scenarios / Working Scenarios of a WAVEGUIDE MAGIC T

Balanced mixers –
A WAVEGUIDE MAGIC T combines the local oscillator (LO) signal and the RF signal in an image‑rejection mixer architecture.
Phase comparators and detectors –
A WAVEGUIDE MAGIC T compares the phase difference between two input signals at the collinear ports.
Sum‑and‑difference (monopulse) radar systems –
A WAVEGUIDE MAGIC T generates the sum (Σ) and difference (Δ) channels from four antenna quadrant signals for angle tracking.
Power combiners and dividers –
A WAVEGUIDE MAGIC T equally splits a high‑power signal into two paths, or combines two signals into one.
Reflectometer and VSWR measurement systems –
A WAVEGUIDE MAGIC T separates forward and reflected waves in a directional bridge configuration.

10-15GHz WR-75 WAVEGUIDE MAGIC T
